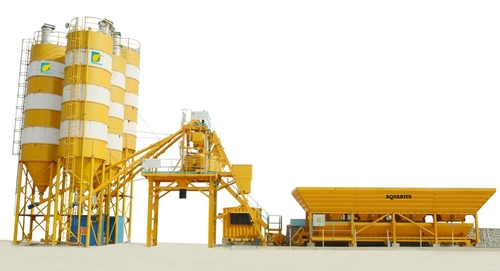

Stationary Batching Plants

Stationary Batching Plants
Stationary Batching Plants
Send Inquiry
Product Code : 09
Brand Name : aquarius
Product Description
Concrete Batching Plants are designed for large construction or long-running projects wherein consistent supply of concrete is needed. The plants are available in different types like

Stationary Concrete Batching Plants, Mobile Batching Plants and Concrete Recycling Plant. These cater to specific requirements for example, the stationary batching plant is set up nearby a long-running construction project to ensure consistent supply of concrete. Whereas the mobile version of the concrete Mixing plant can be moved to any location where ready-mix concrete is needed. These are suitable for precast manufacturers, contractors, and ready-mix producers.

The range includes control panel with large aggregate bins in different numbers according to the requirements. The materials are put in exact proportion as instructed by the batching plants to get accurate ready-mix in standard proportion. Special designs for dam projects are also available with us.

Features:
  • Optimum aggregate loading height
  • Large mixer platform for convenient maintenance
  • Special configuration for micro silica dosing and ice dosing
  • Available in different capacities as per clients requirements
  • High accuracy load cells for electronic weighing of cement, aggregates & water with digital display

Model Specifications

Unit

SP 30

SP 60

SP 70

SP 90

SP 100

SP 120

Type of Mixer

 -

Planetary

Twin Shaft

Twin Shaft

Twin Shaft

Twin Shaft

Twin Shaft

Capacity of Mixer

750

1500

1800

3000

3380

4500

Compacted Output per Batch

500

1000

1250

2000

2250

3000

No. of Aggregates

no.

4

4/5/6

4/5/6

4/5/6

4/5/6

4/5/6

Storage Capacity of Aggregate

m3

30

40 to 240

40 to 240

70 to 240

70 to 250

70 to 240

No. of Cement / Fly Ash

no.

4

4

4

4

4

No. of Water

no.

2

2

2

2

2

No. of Additives

no.

2

4

4

4

4

Aggregate Loading in Mixer

 -

Skip Hoist/Belt

Skip Hoist/Belt

Skip Hoist / Belt

Conveyor Belt

Conveyor Belt

Conveyor Belt

Connected Load#

kW

52

88

95

130

160

180

D.G. Set Required

kVA

62.5

125

150

250

250

320
