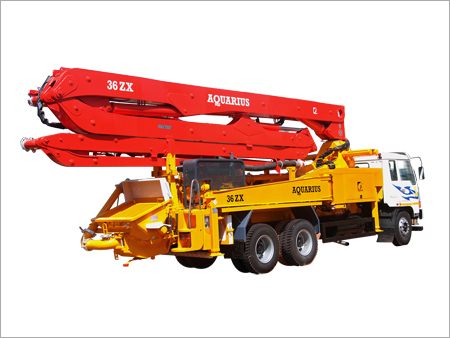

Concrete Boom Pumps

Concrete Boom Pumps
Concrete Boom Pumps
Send Inquiry
Product Code : 03
Brand Name : Aquarius
Product Description

Concrete Boom Pump

We are a noteworthy manufacturer, exporter and supplier of premium quality Concrete Boom Pumps. These pumps are demanded at the construction sites and used for filling every gap left with the concrete mix. Offered plant is manufactured using the finest grade material and quality components with the help of sophisticated technology in line with the defined industry standards to ensure optimum functionality at the clients' end. Also, these Concrete Boom Pumps are checked on various parameters by our analyzers in order to deliver the best product to the client.

It is an original resolution that makes sure quicker achievement of job and condensed down time. It is accessible in lengths of 20 m, 32 m and 36 m. The boom permits rapid setting-up by conquering the inevitability of weighty pipeline lying.

Boom Pump Features

  • Efficient overturn pumping and overturn cleaning
  • Digital hour indicator
  • Digital high temperature exhibit
  • Appropriate for 2 axle chassis
  • A smaller amount ground room needed
  • Anti Stalling Device (ASD) to put aside engine overfilling
  • Distant control for boom procedures
  • Pump delivery valve to shut-off oil flow of hydraulic pump throughout obstructions
  • Preservation friendly
  • RPM and yield guideline
  • Water separator with display
  • High pressure maintenance pump with huge water reservoir
Slave Engine Design
  • Fuel competent, minimizes per cubic meter price.
  • Minimized Erection & Commissioning Time.
  • Compact Installation costs
  • Improved Services Life of major Mover
  • Improved Power Transmission competence due To direct drive
Handy Remote Control
  • State-of-Art useful & Light in weight Cable distant Control.
  • Unit With All The Pump & Boom tasks integral
Centralized Oil Lubrication System
  • For certain Points & also simple Access Manual Grease Lubrication System to All Points.
Fully Hydraulic open Loop Control system
  • The Pump Regulator defends The Hydraulic System from excess heating & Engine from excess loading.
  • The Regulator Also assists In Output Regulation & enhanced Fuel effectiveness.
Modular Type Boom Control Block
  • It takes fewer Spaces & is adjustable to fractional boom Movement.
  • Two – Hand Operation Control Of Outriggers makes sure security In Operation.
Boom Material
  • Boom fabricated of far above the ground power alloy steel From Sweden which provides utmost potency & presentation And smallest amount of load of the construction.
PRODUCT FEATURE

Slave Engine design for Enhanced Boom Pump Efficiency.
  • Fuel proficient, minimizes per cubic meter cost.
  • Condensed Erection & assignment Time.
  • Decreased fitting costs
  • Improved Services Life OF Prime Mover
  • Improved Power Transmission competence owing to the direct drive
Handy Remote Control for Boom Pump
  • State-of-Art useful & light in load Cable Remote Control.
  • Unit With all The Pump & Boom tasks are innate
Models are Available in :
  • 20.07
  • 36.07
  • 36.09
  • 43CX-5
BOOM M 20 Z
Model Specifications Unit 20.07
Boom Folding   Z
Chassis Allowable GVW kg 16000
Horizontal Reach (max.) m 16.4
Vertical Reach (max.) m 20
Reach Depth m 9.5
Max. Support Leg Force: Front kN 112
Max. Support Leg Force: Rear kN 44
Unfolding Height m 5.5
Slewing Range deg 365
Delivery Line Diameter mm 125
Length of End Hose (dn 125) m 3
Max. Hydraulic Pressure bar 300
Electrical System V 24
Power Drive Slave Engine  kW 82



CONCRETE PUMP
Model Specifications Unit 20.07
Concrete Output Max. Theoretical m3/hr 65
Concrete Pressure Max. Theoretical bar 71
No. of Strokes / Min no. 25
Delivery Cylinder Diameter mm 200
Piston Stroke Length mm 1400
Hydraulic Transmission Ratio (rod Side)   1:4:9
Easy Clean Hopper Capacity l 600
Water Tank Capacity l 500
    BOOM 36.09
    Model Specifications Unit 36.07 36.09
    Arms no. 4 4
    Boom Folding   Z Z
    Chassis Allowable GVW kg 25000 25000
    Horizontal Reach (max.) m 31.5 31.5
    Vertical Reach (max.) m 35.5 35.5
    Reach Depth m 23.4 23.4
    Unfolding Height m 8.1 8.1
    Slewing Range deg 370 370
    Delivery Line Diameter mm 125 125
    Length of End Hose (DN 125) m 3 3
    Max. Hydraulic Pressure bar 300 300
    Electrical System V 24 24
    Power Drive Slave Engine kW 82 82



    Model Specifications Unit 36.07 36.09
    Concrete Output Max. Theoretical m3/hr 65 85
    Concrete Pressure Max. Theoretical bar 71 54
    No. of Strokes/min no. 25 25
    Delivery Cylinder Diameter mm 200 230
    Piston Stroke Length mm 1400 1400
    Hydraulic Transmission Ratio (Rod Side)   1:4.9 1:6.5
    Easy Clean Hopper Capacity l 600 600
    Water Tank Capacity l 500 500







    PLEASE CONTACT AQUARIUS ENGINEERS  OFFICIAL WEBSITE www.aquariusengineers.biz FOR MORE INFORMATION.
